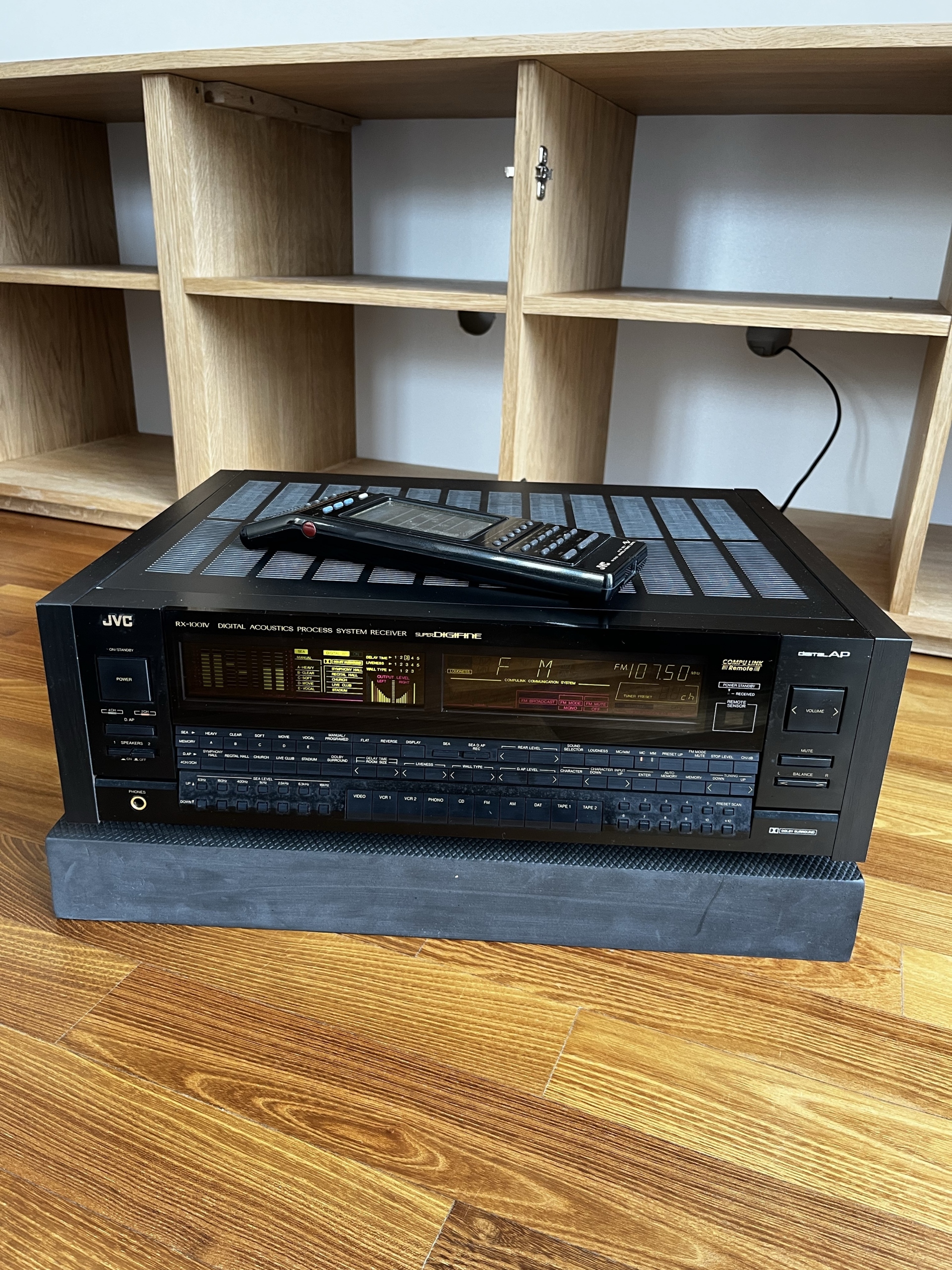

Amplituner vintage z roku 1988 całkowicie sprawny technicznie w świetnym stanie wizualnym. Drewniane boczki ( można ściągnąć ) i oryginalny pilot w komplecie. Jest to najwyższy model JVC z wieloma funkcjami i doskonałym analogowym dźwiękiem jak przystało na topowy sprzęt JVC z tamtego okresu. Moc 120 W na kanał. Waga około 14 kg. Wymiary i szczegółowe dane techniczne poniżej. Możliwa bezpieczna wysyłka. W razie pytań proszę pisać.

General

• Manufacturer: JVC

• Model: RX-1001 VBK

• Type: Surround 2 / 4 channel receiver

• Years of manufacture: 1988 - 1989

• Made in: Japan

• Color: Black

• Remote control: JVC RM-SR-1001

• Dimensions (WxHxD): 475 x 156 x 383 mm

• Weight: 13.5 kg

• Original price approx.: 2'200 DM

Connections:

• Number of inputs:

  • Phono MM: 2.5 mV, 47 kOhm

  • Phono MC: 0,25 mV, 100 Ohm

  • Tape Play 1, 2: 230 mV, 47 kOhm

  • DAT Play: 230 mV, 47 kOhm

  • CD, Video: 230 mV, 47 kOhm

  • VCR Play 1, 2: 230 mV, 47 kOhm

  • Antenna: 75 Ohm, 300 Ohm

• Number of outputs:

  • Tape Rec 1, 2: 230 mV

  • Rear Pre-Out: 230 mV

Video Monitor Out: A, B Headphones: 8 - 16 Ohm

• 3 speaker pairs (2x front, 1x rear)

Technical Data

Amplifier

• Continuous power (at distortion)

  • 8 Ohm 2-channel: 2x 120 W RMS, 20 - 20,000 Hz, < 0.007%.

  • 8 Ohm Surround:

    • Front speaker: 2x 110 W RMS, 20 - 20,000 Hz, < 0.007%

    • Rear speakers: 2x 15 W RMS, 1 kHz, < 0.07%

• Dynamic power

  • 8 Ohm:

  • 4 Ohm:

• Total harmonic distortion: 0.1% at rated power

• Attenuation factor: 45 at 8 Ohm

• Frequency response:

  • Phono:

  • High Level: 5 - 70,000 Hz

• Signal-to-noise ratio:

  • Phono: 80 dB

  • Tape 1: 100 dB

Tape 2: 85 dB High Level: 85 dB

• Tone control equalizer:

  • Equalizer 7 center frequencies: 63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.3 kHz, 16 kHz.

• Control range: ± 10 dB

• Loudness: yes

• High Filter: yes

• Low Filter (Subsonic): yes

• Muting: yes

<em>Tuner</em>

• Reception: FM/MW

• Frequencies:

  • FM: 88 - 108 MHz

  • MW: 535 - 1605 KHz

• Input sensitivity:

  • FM: 1.5µV

  • MW: 30µV

• Frequency response: 30-15,000 Hz (+ 0.5 dB, - 0.8 dB)

Distortion factor: 0.08% (mono), 0.08% (stereo) Signal-to-noise ratio: 84 dB (mono), 78 dB (stereo)

• Channel separation: 50 dB at 1 kHz

• Selectivity: 80 dB at 400 kHz

• Co-wave selection: 1.5 dB

• Spurious wave selection: 70 dB

• Image frequency attenuation: 90 dB

• IF attenuation: 100 dB

• AM suppression: 55 dB

Special Features

• Digital - / light bar display

• 3-fold overload protection

• Tape Dubbing

• Equalizer

• Audio muting

• FM Muting

• Compu-Line connections

• Integrated, digital acoustic processor

• Video Inputs (NO Y/C!)

• Programmable Remote Control

• First receiver with Dolby Surround

• Very clear despite a variety of options.
