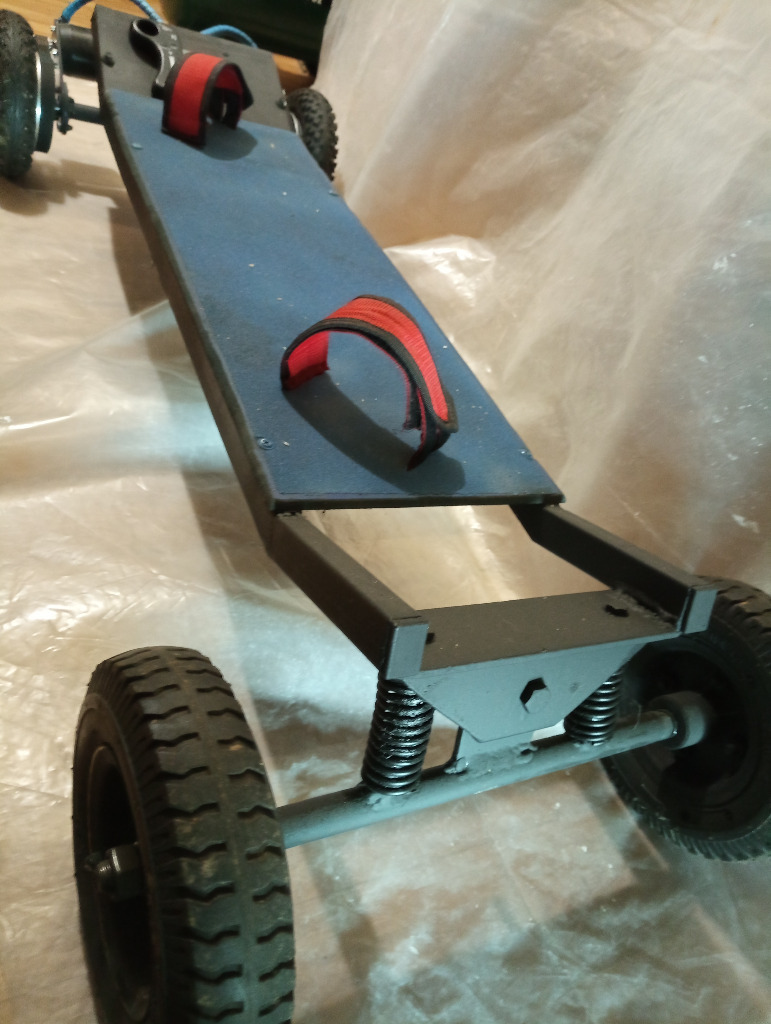

Deskorolka Mountainboard - Elektryczna

Projekt 100% DYI.

Rama z profili metalowych 4x2 - bardzo wytrzymała.

Zawieszenie sprężynowe przód-tył

Koła tył 200x50; przód 2.50-4

Sterowana kontrolerem bezprzewodowym - 4 biegi + wsteczny

Napęd tył na oba koła

- silniki - C6374 170KV Sensorless

Description:

Dustproof and Waterproof, Hall Sensor Can Make the Motor Start Smoothly and Make the ESC More Efficient

Max Output Watt is 2800W and Not Easy to Get Hot

Better efficiency, motor comes with low KV(170KV), high torque(Max Torque is 3N.m)

For DIY Electric Skateboard Electric Bike Mini Scooter Surfboard

Specification:

Material: Metal

Motor Diameter: 63mm / 2.48inch

Height: 70mm / 2.76inch

Shaft Diameter: 10mm / 0.39inch

Motor KV: 170(RPM/V)

Install Holes: 44/30mm

Mounting hole size: M4x4

Rated Voltage: 24V-36V

Max Current: 120A

Max Torque: 3N.m

Max. Output Watt: 2800W

Przeniesienie napędu pasek - gratis dorzucam 2komplet pasków.

Kontroler 36V

Specifications:

Double drive: 100*76*18mm

Voltage: 36V

Current: 12A

Maximum RPM: 3000 rpm

Maximum power: 430W (36V)

Drive mode: sine wave FOC has a slow start

Maximum speed: 35KM/H

Protection: over-voltage, under-voltage, over-temperature, stall, CWCCW, speed control

Sensing method: Hall

Carrying weight: ≤120KG

Power connector: XT60

Motor plug: 4mm banana plug

Hall interface: 5pin 2.0 connector

Size: approx. 18.5*10*4cm / 7.28*3.94*1.57in

Weight: approx. 227g

Zasilanie pakiet akumulatorów - 4x4Ah
