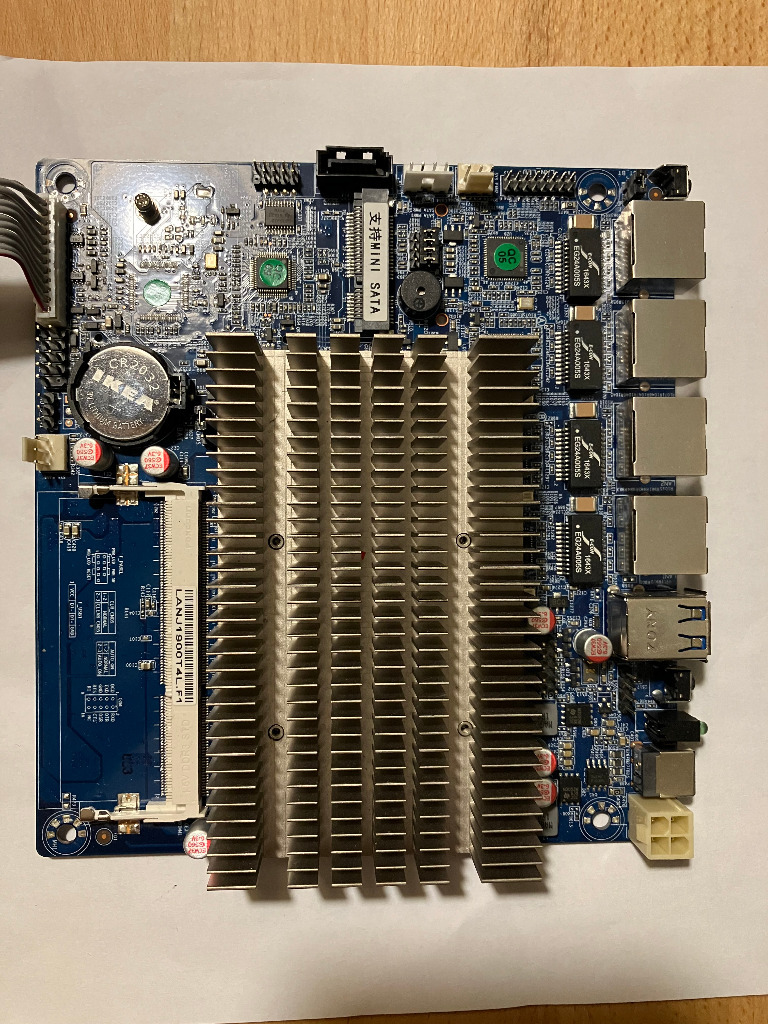

Płyta głowna w standardzie mini-ITX.
Sprzęt w pełni spawny sprawdzany w serwisie komputerowym.
Do plyty dorzucam 4GB pamięci RAM

Specyfikacja:
CPU - Intel Atom Bay Trail J1900 processor
Chipset - Intel J1900
Memory - 1 x SO DIMM DDR3 1066/1333MHz, Max up to 8GB
Graphics - Intel HD Graphics
Audio - None
LAN - Onboard 4x Intel 82583V 1000LAN(10/100/1000MB Adaptive LAN), support RPL/PXE. Non-disk boot
Storage Interface - 1 x SATA 3Gb/s (1PCS SATA connector with Power), 1x SATA with Power , 1 x MSATA slot,1 x CF slots for selection)
Expansion Slots - 1×MINI-PCIE slot for M-SATA, 1 x mini PCIE for WIFI,3G for selection
USB - 2*USB 2.0+1*USB3.0 (2 pcs on IO panel,1 pcs via the USB brackets connected)
Internal I/O Connectors
1x4pin 12VDC port
1x F_Panel header
1 x USB 2.0 header
1 x SATA connector
1 x SATA_PWR header
1 x VGA headers
1 x system and CPU fan header
1 x COM headers
1 x Auto-On header
1 x GPIO header
Back Panel Connectors
1 x 12V DC Jack
1 x Power&HDD LED lighter
1 × Power On Button
1 x USB 2.0+1 x USB3.0 connectors
4 x RJ-45 Giga LAN ports
1 x Reset Button
I/O Controller - 1 x IT8782F
BIOS - AMI Authorized BIOS process, support RPL/PXE
Form Factor - Mini-ITX 150x 140mm
Work Temperature - -10~60°C
Working humidity - 0%~90% relative humidity, non-condensing
