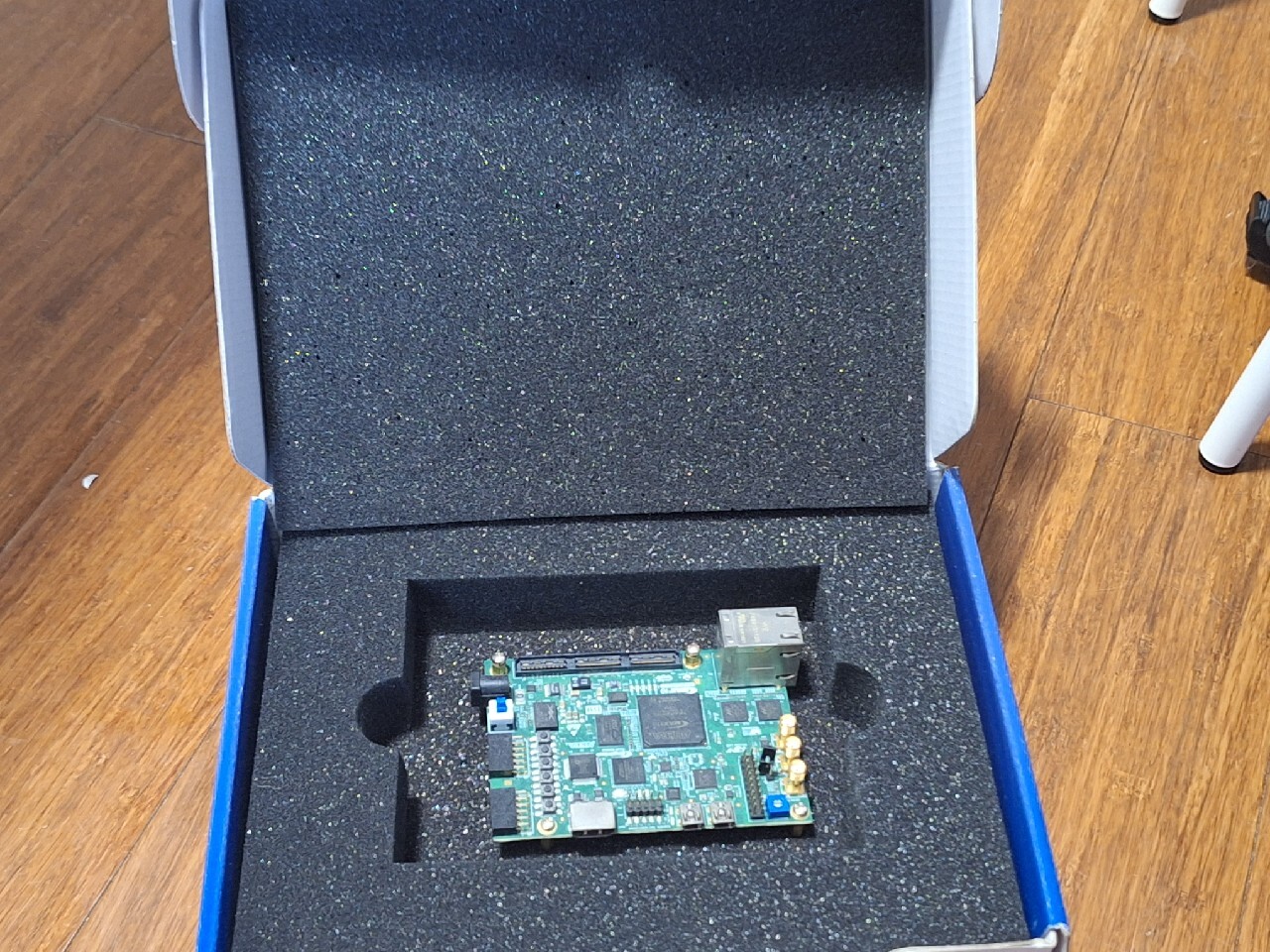

Max 10 FPGA Development Kit

Featured Devices:

• MAX 10 FPGA (10M50D, dual supply, F484 package)

• Enpirion®

EN2342QI 4 A PowerSoC Voltage-Mode Synchronous Step-Down Converter with

Integrated Inductor Enpirion

• EN6337QI 3 A High-Efficiency PowerSoC DC-DC Step-Down Converters with Integrated Inductor

• Enpirion EP5358xUI 600 mA PowerSoC DC-DC Step-Down Converters with Integrated Inductor

• MAX II CPLD – EPM1270M256C4N (On-board USB-Blaster™ II)

• Programming and Configuration:

• Embedded USB-Blaster II (JTAG)

• Optional JTAG direct via 10-pin header

• Memory Devices:

• 64-Mx16 1 Gb DDR3 SDRAM with soft memory controller

• 128-Mx8 1 Gb DDR3 SDRAM with soft memory controller

• 512-Mb Quad serial peripheral interface (quad SPI) flash

• Communication Ports:

• Two Gigabit Ethernet (GbE) RJ-45 ports

• Ethernet Port A (Bottom)

• Ethernet Port B (Top)

• One mini-USB2.0 UART

• One high-definition multimedia interface (HDMI) video output

• One universal high-speed mezzanine card (HSMC) connector

• Two 12-pin Digilent Pmod™ compatible connectors

Analog:

• Two MAX 10 FPGA analog-to-digital converter (ADC) SMA inputs

• 2x10 ADC header

• Potentiometer input to ADC

• One external 16 bit digital-to-analog converter (DAC) device with SMA output

• Clocking

• 25 MHz single-ended, external oscillator clock source

• Silicon labs clock generator with programmable frequency GUI

• on-board USB-Blaster™ II

• 2A Power Supply and cord
