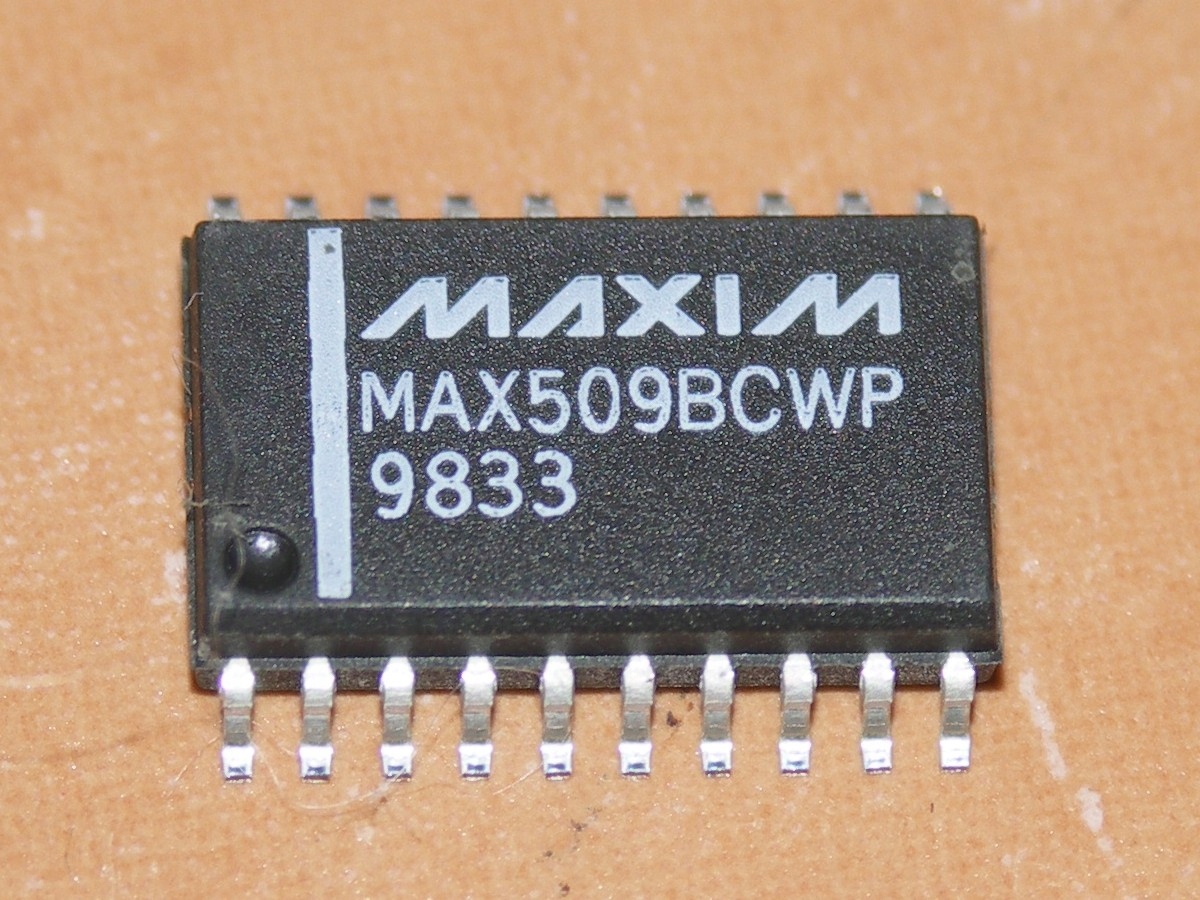

MAX509BCWP
Poczwórny przetwornik cyfrowo-analogowy, wyjścia rail-to-rail, 8-bit, Szeregowe, 4.5V do 5.5V, -5.5V do 0V
Quad, Serial 8-Bit DACs with Rail-to-Rail Outputs
- Producent: Maxim
- Obudowa: SO-20
- Supply voltage range: 4,5V to 5,5V, -5,5V to 0V
- Operating temperature range: 0°C to 70°C
- Output buffer amplifier swing rail to rail
- Reference input range includes both supply rails
- Calibrated offset, gain and linearity: 1,5 LSB TUE
- 10MHz serial interface, compatible with: SPI, QSPI (CPOL = CPHA = 0) and MICROWIRE
- Double-buffered registers for synchronous updating
- Serial data output for daisy-chaining
- Power-on reset clears serial interface and sets all registers to zero
- oznaczenia: MAX509BCWP-ND, 700-MAX509BCWP, 2514851, 73Y4711, 2514851, 4110805, 1117717
