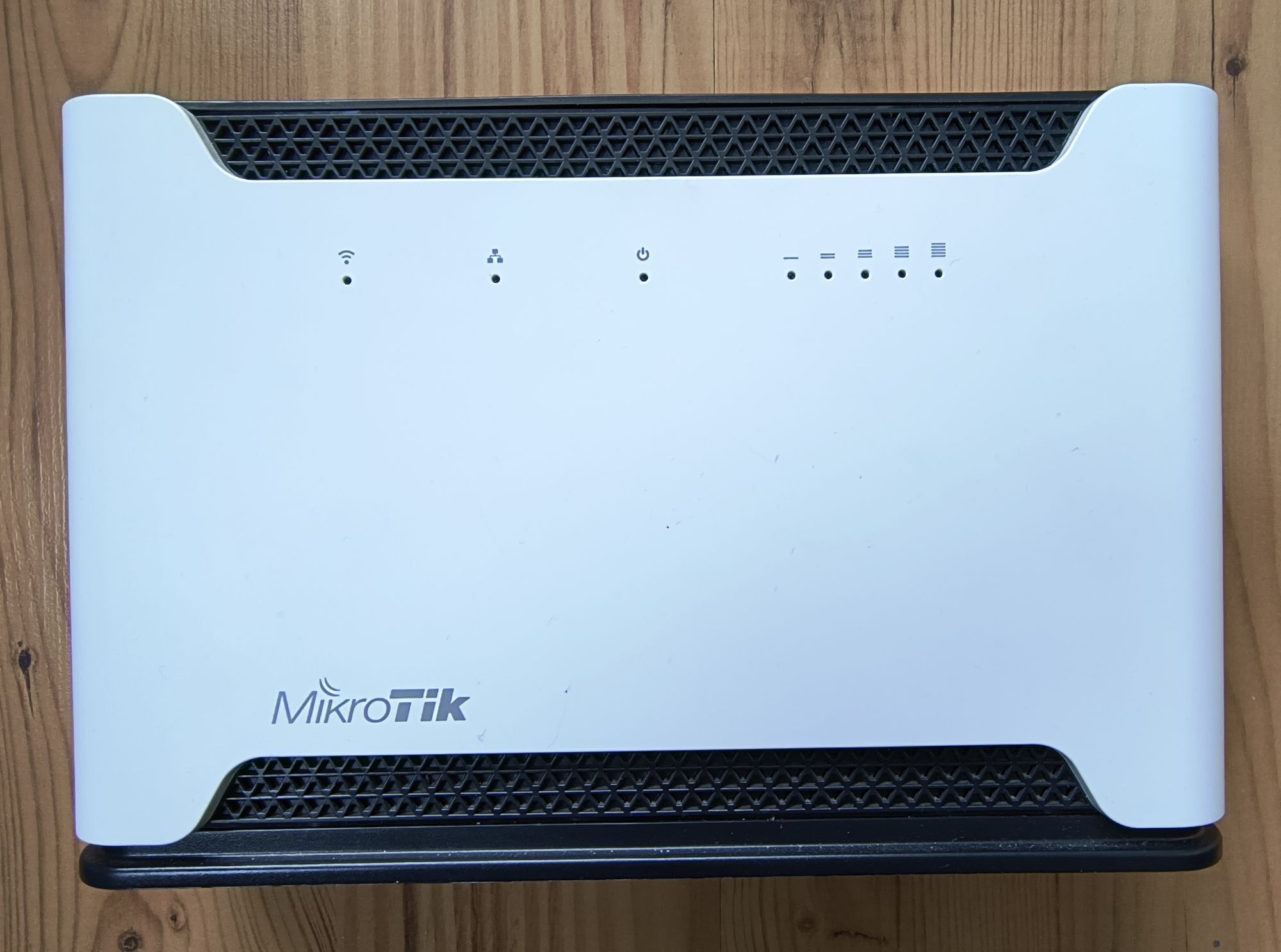

MikroTik Chateau 5G - model D53G-5HacD2HnD-TC&RG502Q-EA. Używany, działa, zaktualizowany do najnowszej wersji RouterOS. Na górze obudowy niewielkie szczeliny - pęknięcia obudowy, nie wpływa to na działanie routera.

Wbudowany modem 5G (nie LTE jak na innych aukcjach - do działania wymagana karta SIM), pięć portów gigabitowych, USB 2.0.

Zestaw zawiera router, zasilacz 24V oraz nieoryginalne anteny (nie pokazane na zdjęciach), bez oryginalnego pudełka.

Specyfikacja wg producenta:

Specifications

• Product codeD53G-5HacD2HnD-TC&RG502Q-EA

• Suggested price$530.00

• ArchitectureARM 32bit

• CPUIPQ-4019

• CPU core count4

• CPU nominal frequency716 MHz

• CPU Threads count4

• Switch chip modelIPQ-4019

• Dimensions240 x 156 x 44 mm

• RouterOS license4

• Operating SystemRouterOS v7

• Size of RAM256 MB

• Storage size16 MB

• Storage typeFLASH

• MTBFApproximately 200'000 hours at 25C

• Tested ambient temperature-40°C to 70°C

Powering

• Number of DC inputs1 (DC jack)

• DC jack input Voltage12-28 V

• Max power consumption23 W

• Max power consumption without attachments17 W

• Cooling typePassive

Mobile

• 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)

• 3G bands6 (850 MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)
  19 (800 MHz)
  1 (2100MHz)

• LTE Category20 (2.0 Gbps Downlink, 200 Mbps Uplink)

• LTE FDD bands1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  18 (800 MHz)
  19 (800 MHz)
  20 (800MHz)
  26 (850MHz)
  28 (700MHz)
  32 (1500 MHz)

• LTE TDD bands38 (2600MHz)
  39 (1900MHz)
  40 (2300MHz)
  41 (2500MHz)
  42 (3500MHz)
  43 (3700MHz)
  34 (2000 MHz)

• 5G NSA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)

• 5G NSA TDD bands40 (2300 MHz)
  41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
  79 (4700 MHz)
  38 (2600 MHz)

• 5G SA FDD bands1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)

• 5G SA TDD bands41 (2500 MHz)
  77 (3700 MHz)
  78 (3500 MHz)
  79 (4700 MHz)
  38 (2600 MHz)
  40 (2300 MHz)

• TAC86073604

Wireless specifications

• Wireless 2.4 GHz Max data rate300 Mbit/s

• Wireless 2.4 GHz Number of chains2

• Wireless 2.4 GHz standards802.11b/g/n

• Antenna gain dBi for 2.4 GHz2

• Wireless 2.4 GHz chip modelIPQ-4019

• Wireless 2.4 GHz generationWi-Fi 4

• Wireless 5 GHz Max data rate867 Mbit/s

• Wireless 5 GHz Number of chains2

• Wireless 5 GHz standards802.11a/n/ac

• Antenna gain dBi for 5 GHz4

• Wireless 5 GHz chip modelIPQ-4019

• Wireless 5 GHz generationWi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports5

Peripherals

• Number of SIM slots1 Modem (Micro SIM)

• Number of USB ports1

• USB Power ResetYes

• USB slot typeUSB type A

• Max USB current (A)1

• Number of M.2 slots1

Other

• Mode buttonYes

Certification & Approvals

• CertificationCE, EAC, ROHS
