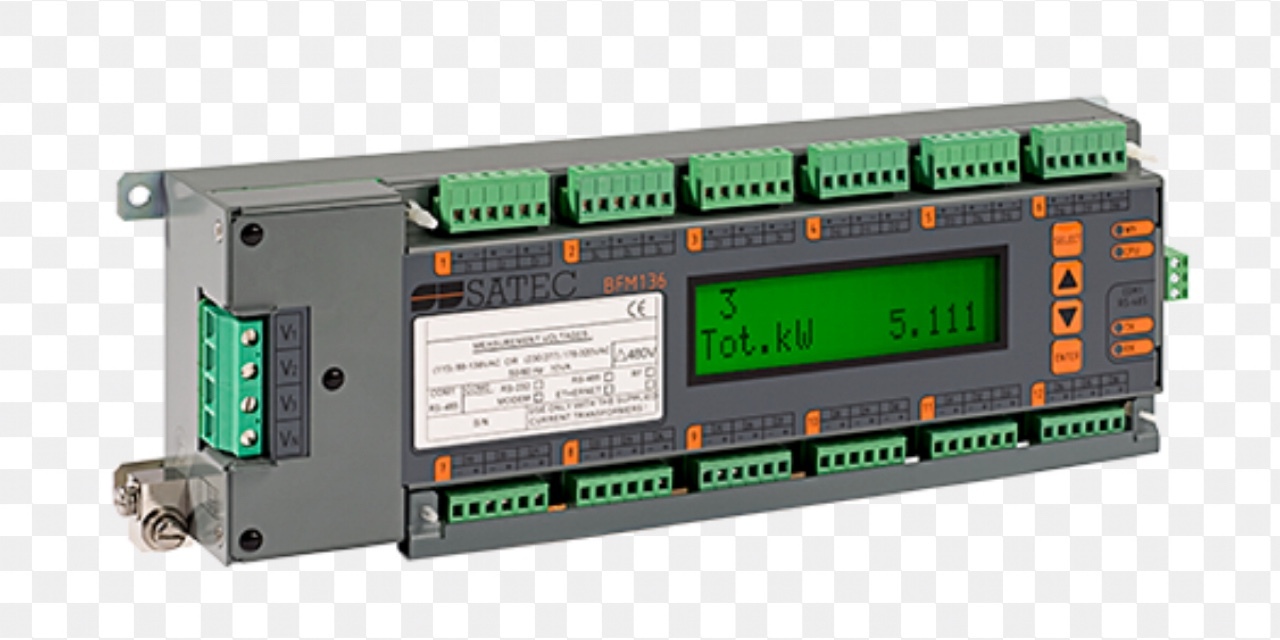

Fitting for both new and retrofit projects, SATEC’s Branch Feeder Monitor™, is a multi-circuit power meter, monitoring up to 12 three-phase power circuits or 36 single-phase, or any combination. The BFM136 utilizes High Accuracy Current Sensors (HACS) and is ideal for a wide range of applications, from monitoring medium-voltage substations through commercial multi-tenant billing in shopping-centers or office buildings.
The BFM136 is a highly reliable piece of equipment featuring a rugged design for a long life of uninterrupted service.
Cost-effective: saves drastically on installation costs and space occupied by dozens of legacy meters
Multi-circuit: multi-load metering
up to 12 three-phase loads
up to 34 single-phase loads
various combinations of the two
Revenue Meter:
Communication
Multi-option Current Inputs
40mA for HACS CTs (100-3,000A)
special input: clip-on 5A HACS for retrofit
100mA inputs for 3rd party CTs
