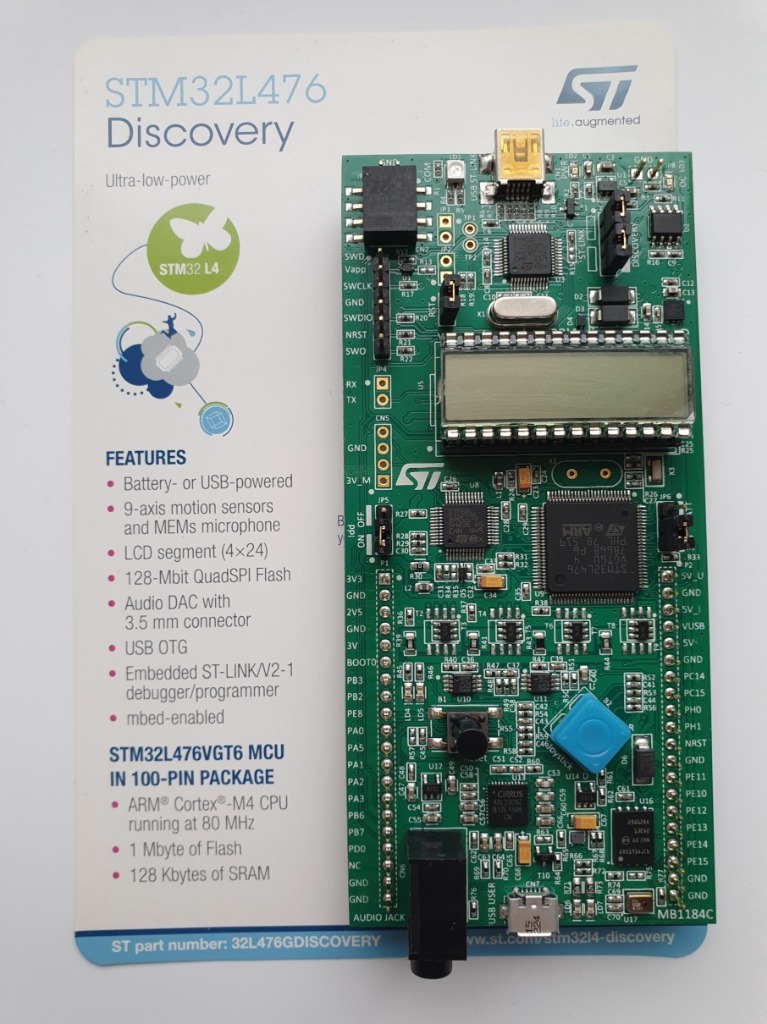

Nowy moduł ewoluacyjny, nigdy nie używany, oryginalne opakowanie.

Specyfikacja:
https://os.mbed.com/platforms/ST-Discovery-L476VG/

Microcontroller features:
- STM32L476VGT6 in LQFP100 package
- ARM®32-bit Cortex®-M4 with FPU and ART accelerator
- 80 MHz max CPU frequency
- VDD from 1.71V to 3.6 V
- 1 MB Flash
- 128 KB SRAM
- GPIOs (114) with external interrupt capability
- 12-bit ADCs with 16 channels (3)
- 12-bit DAC channels (2)
- USART (3)
- UART (2)
- LPUART (1)
- SAI (2)
- I2C (3)
- SPI (3)
- Quad SPI (1)
- Advance control Timer (2)
- General purpose Timer (7)
- Basic Timer (2)
- Low-power Timer (2)
- Watchdog Timers (2)
- CAN (1)
- USB OTG FS
- SDMMC
- SWPMI
- LCD COM x SEG
- Random generator (TRNG for HW entropy)
- Capacitive sensing (21)
- Analog comparator (2)
- Operational amplifier (2)

Board features:
- On-board ST-LINK/V2-1 debugger/programmer with SWD connector
--- Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
- Four power supply options:
--- ST-LINK/V2-1
--- USB FS connector
--- External 5 V
--- CR2032 battery (not provided)
- Two user LEDs: LD4 (red), LD5 (green)
- Two push buttons: USER and RESET
- Four directions Joystick with selection
- USB OTG FS with micro-AB connector
- SAI Audio DAC, Stereo with output jack
- Digital Microphone MEMS Accelerometer and magnetometer Mems
- Gyroscope MEMS
- 128-Mbit Quad-SPI Flash memory
- MCU current ammeter with 4 ranges and auto calibration
- Connector for external board or RF-EEPROM
- Extension connectors
--- Virtual Com port
--- Mass storage (USB Disk drive) for drag'n'drop programming
--- Debug port
