Configuration Features

• Connector Seal Code : <em>E Seal</em>

• Blank Cavity Position : <em>0</em>

• Number of Positions : <em>21</em>

Product Type Features

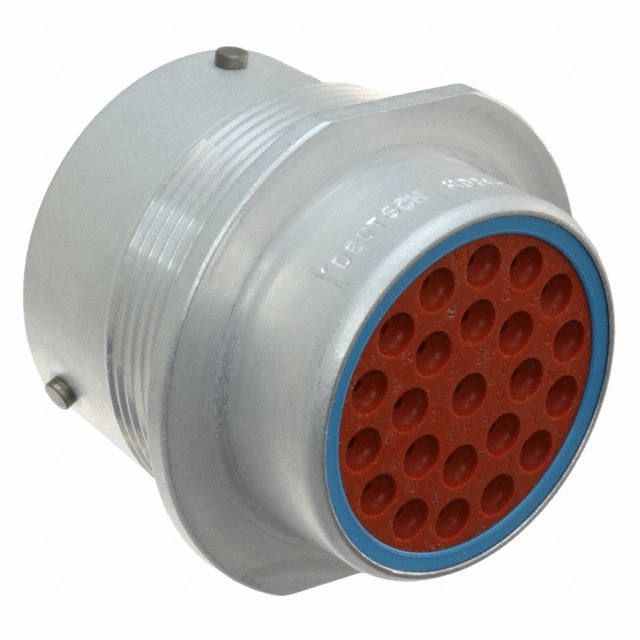

• Connector Shape : <em>Circular</em>

• Mixed & Hybrid Connector : <em>Yes</em>

• Connector & Housing Type : <em>Housing for Male Terminals</em>

• Connector System : <em>Wire-to-Panel</em>

• Sealable : <em>Yes</em>

• Primary Locking Feature : <em>Integrated in Housing</em>

• Connector & Contact Terminates To : <em>Wire & Cable</em>

Contact Features

• Contact Type : <em>Pin</em>

• Contact Size : <em>Size 16, Size 12</em>

• Mating Pin Diameter (mm): <em>1.6, 2.4</em>

• Mating Pin Diameter (in): <em>.063, .094</em>

• Contact Current Rating (Max) (A): <em>25, 13</em>

Electrical Characteristics

• Operating Voltage (VDC): <em>250</em>

• Operating Voltage (VAC): <em>250</em>

• Nominal Voltage Architecture (V): <em>250</em>

Other

• Serviceable : <em>Yes</em>

• Connector Position Assurance Capable : <em>No</em>

• EU RoHS Compliance : <em>Compliant</em>

• EU ELV Compliance : <em>Compliant</em>

Mechanical Attachment

• Mating Alignment : <em>With</em>

• Mating Alignment Type : <em>Polarizing Slot</em>

• Terminal Position Assurance : <em>No</em>

• Strain Relief : <em>Without</em>

• Connector Mounting Type : <em>Panel Mount</em>

Packaging Features

• Packaging Method : <em>Package</em>

• Packaging Quantity : <em>1</em>

Dimensions

• Connector Height : <em>41.8 mm [ 1.64 in ]</em>

• Product Length : <em>50.8 mm [ 2 in ]</em>

• Product Width : <em>47.6 mm [ 1.87 in ]</em>

• Compatible Insulation Diameter Range (mm): <em>1.4 – 3.8, 3.6 – 5.2</em>

• Compatible Insulation Diameter Range (in): <em>.055 – .15, .14 – .204</em>

Body Features

• Cable Exit Angle : <em>180°</em>

Housing Features

• Housing Material : <em>Aluminum Alloy</em>

Industry Standards

• IP Rating : <em>IP67</em>

Usage Conditions

• Operating Temperature (Max) : <em>125 °C [ 257 °F ]</em>

• Operating Temperature Range : <em>-55 – 125 °C [ -67 – 257 °F ]</em>

Operation/Application

• Circuit Application : <em>Power</em>
