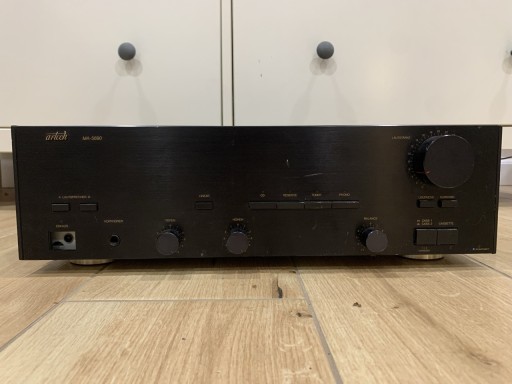

Wzmacniacz sprawdzony pobieżnie, włącza się, potencjometry trzeszczą, po chwili grania pojawia się buczenie w kolumnach. brak przycisku włącznika, stan widoczny na zdjęciu.

General

• Manufacturer: Blaupunkt

• Model: MA-5650 (OEM: Grundig V 8200)

• Model range: Artech Line

• Type: Integrated amplifier

• Years of manufacture: 1986 - 1988

• Manufactured in:

• Color: Polar Grey

• Remote control: No

• Power consumption: 200 W max.

• Dimensions: 435 x 110 x 330 mm (WxHxD)

• Weight: 9 kg

• Original price approx.: 500 DM

Connections

• Number of inputs:

  • Phono (MM), CD, Tuner, AUX, Tape 1, Tape 2,

• Number of outputs:

  • Line Out rec1, Line Out rec2.

  • speakers/headphones: 4/1 pieces

Technical Data

• Rated power according to DIN45500

  • 8 Ohm: 2 x 50 Watt

  • 4 Ohm:

• Music power according to DIN45500

  • 8 Ohm: 2 x 75 Watt

  • 4 Ohm:

• Minimum load resistance: 8 Ohm

• Distortion at 1kHz and rated power:

  • Distortion factor: < 0.01 % (-1dB)

  • Intermodulation: 0.03

• Frequency response: < 5 Hz - >80000Hz

• Dynamic range at nominal power/50m

  • Noise voltage distance according to IEC

    • High level: >95/70 dB

    • Phono MM : >78/69 dB

Sound-to-voltage ratio according to DIN

• High level: >86/62 dB

  • Phono MM : >69/61 dB

  • Interference voltage distance according to IEC

    • High level: >92/67 dB

    • Phono MM : >73/66 dB

  • External voltage spacing acc. to DIN

    • High level: >88/63 dB

    • Phono MM : >69/62 dB

• Tone control: yes

  • Equalizer for 63Hz, 250Hz, 1kHz, 4kHz and 16 kHz

• Loudness: yes

• High Filter: no

• Low Filter (Subsonic): no
