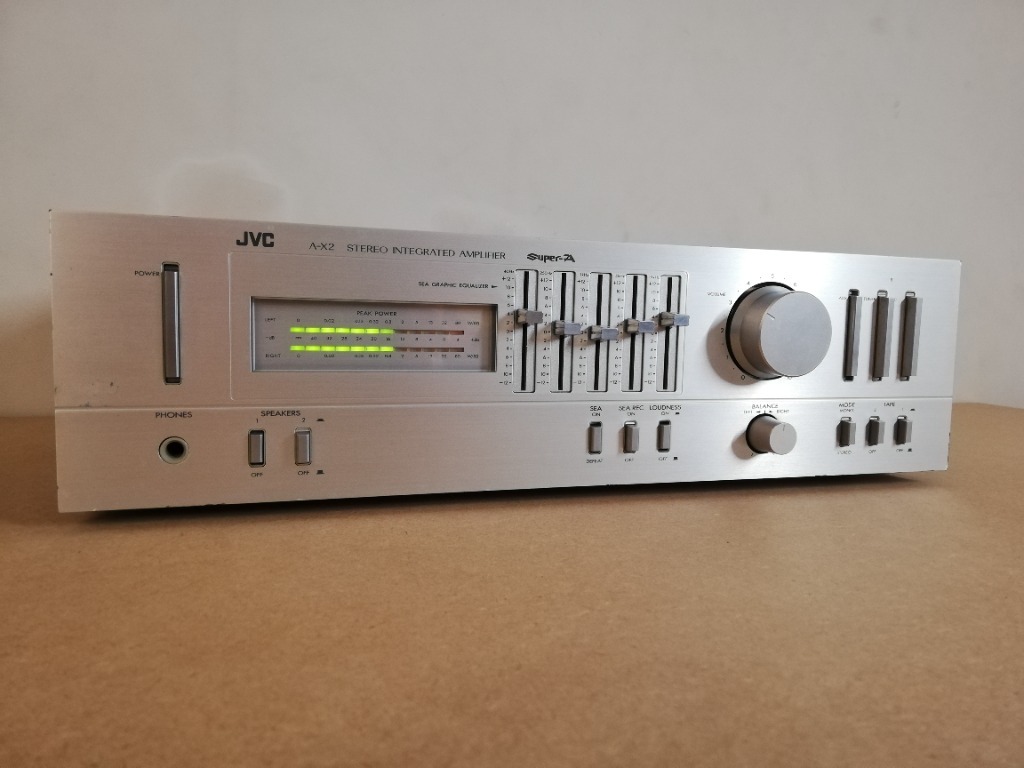

Wzmacniacz stereo JVC A-X2. Sprawny technicznie. Potencjometry działają bez problemu. Posiada nieliczne ślady użytkowania widoczne na zdjęciach.

General

• Manufacturer: JVC

• Model: A-X2

• Years of manufacture: 1979 - 1981

• Made in: Japan

• Color: Silver

• Type: Super-A integrated amplifier

• Power consumption: 400 watts

• Dimensions: 420 x 120 x 329 mm

• Weight: 6.6 kg

Connections

• Number of inputs:

  • Phono 2.5 mV/ 47 KOhm

  • Tuner, Aux, 2x Tape 150 mV/ 40 KOhm

  • Tape Play DIN:

• Number of Outputs:

  • Tape Rec:

  • Tape Rec DIN:

  • Headphones

  • 2x Loudspeaker

Technical Data

• Continuous power (at distortion factor)

  • 8 Ohm: 42 Watt at 0,007 % at 1 KHz

  • 8 ohms: 40 watts at 0.007 % at 20- 20 KHz T.H.D.

• Total harmonic distortion: 0.003% at rated power at 1 KHz, 8 ohms

• Attenuation factor: 50 (1 KHz, 8 Ohm)

• Frequency response: 10 - 100,000 Hz

• Signal-to-noise ratio: 95 dB

• Tone control:

  • Bass: 40 Hz ± 12 dB

  • lower mids: 250 Hz ± 12 dB

  • Midrange: 1,000 Hz ± 12 dB

  • Presence: 5,000 Hz ±; 12 dB

  • Treble: 15,000 Hz ± 12 dB

• Loudness: Switchable

  • + 6 dB at 100 Hz

  • + 4 dB at 10 KHz

Special Features

• 5-band equalizer, also switchable to record

• Mono/stereo switch

• Power display with 2x 12 LEDs

• Super-A power amplifiers, see also:

  • Super-A

Osoby zainteresowane zapraszam do licytacji od symbolicznej złotówki.

Polecam.
