Nie wysuwa szuflady, silniki słychać.

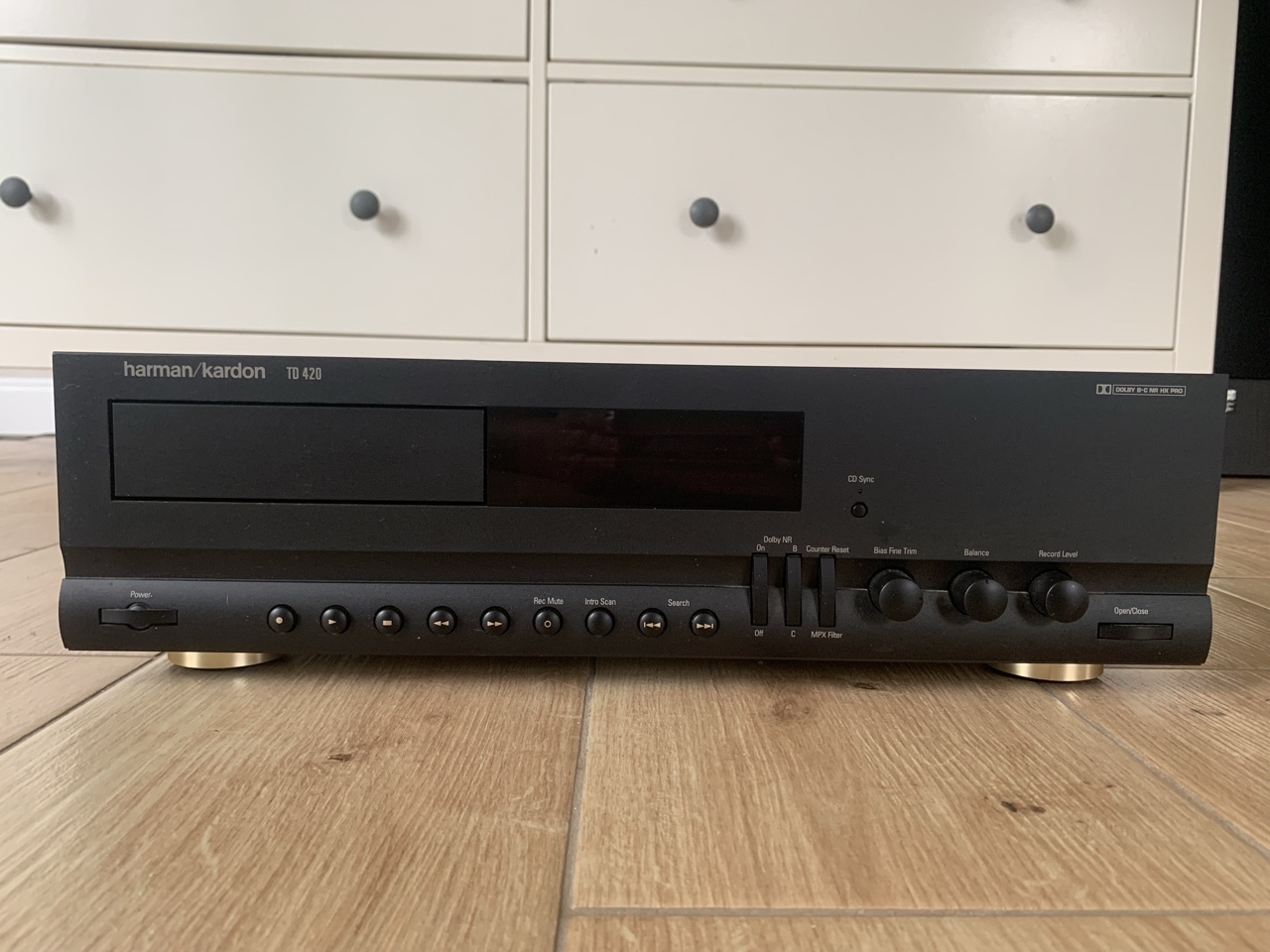

• Manufacturer: Harman/kardon

• Model: TD 420

Type: Cassette Tape Deck

• Years of manufacture: 1996 - 2000

• Color: Black

Remote control: no, but via remote control e.g. from a Harman/Kardon amplifier/receiver controllable (connection Remote In/Out)

• Power consumption: 18 W

Dimensions: 442 x 127 x 321 mm (WxHxD)

• Weight: 5,4 kg

• Original price approx.: 599 DM

Connections

• Inputs: 2

  • Line In (2x RCA RCA), input sensitivity (0 dB), Line: 45 mV, input impedance, Line: 22 kOhm

  • Harman Kardon System Bus (3.5 mm jack)

• Outputs: 2

  • Line Out (2x RCA RCA), output level, 0 dB, 10 kOhm load: 640 mV

  • Harman Kardon System Bus (3.5 mm jack)

Technical Data

• Audio heads: 2 (A/W combination head: hard permalloy)

• Motors: 3, one as servo motor for the cassette tray

• Tape speed: 4,75 cm/s

• Synchronisation fluctuations NAB, effective: 0.05 %, DIN: 0.08 %

• Tape types: I / II / IV (auto tape selector).

• Frequency response, -20 dB (IHF Std.): 20 Hz - 20 kHz ± 3dB with pure iron tape; 20 - 18,000 KHz with chrome tapes (IEC II)

• Coarse signal response (0 dB): 20 Hz - 18 kHz ± 3 dB with Dolby C and pure iron tape

• Distortion factor

  • 1 kHz, Dolby: 0.9 / 1.5 / 1.3 % (I / II / IV)

• Signal to noise ratio (IHF-A 100mV input level) on chrome cassette

Dolby off: 57 dB,

• Dolby B: 65 dB

Dolby C: 73 dB (Ang. according to BdA)

• Dolby: B / C / HX Pro

• MPX filter

• Channel separation: 45 dB

• Crosstalk attenuation: 70 dB

• Cancellation attenuation: 60 dB

• Premagnetization frequency: 105 kHz

• Fast forward and rewind time: 90 S (C-60)

• Peak level indicators: -35 dB to +8 dB (2x12 LED)

• More data at "Hifi Engine": [1]

Special Features

• BIAS Fine Trim.

• Intro Scan

• Music Search function

• clearly visible electronic counter

• illuminated on/off switch (red/green)

Other

• electronic drive control

• Belt-Drive, Single-Capstan

• Electronic real-time counter

• Auto-Reverse: No

• Record mute: Yes

• Fader: No

• Pitch control: No

• CD Synchro Recording: Yes
