Witam

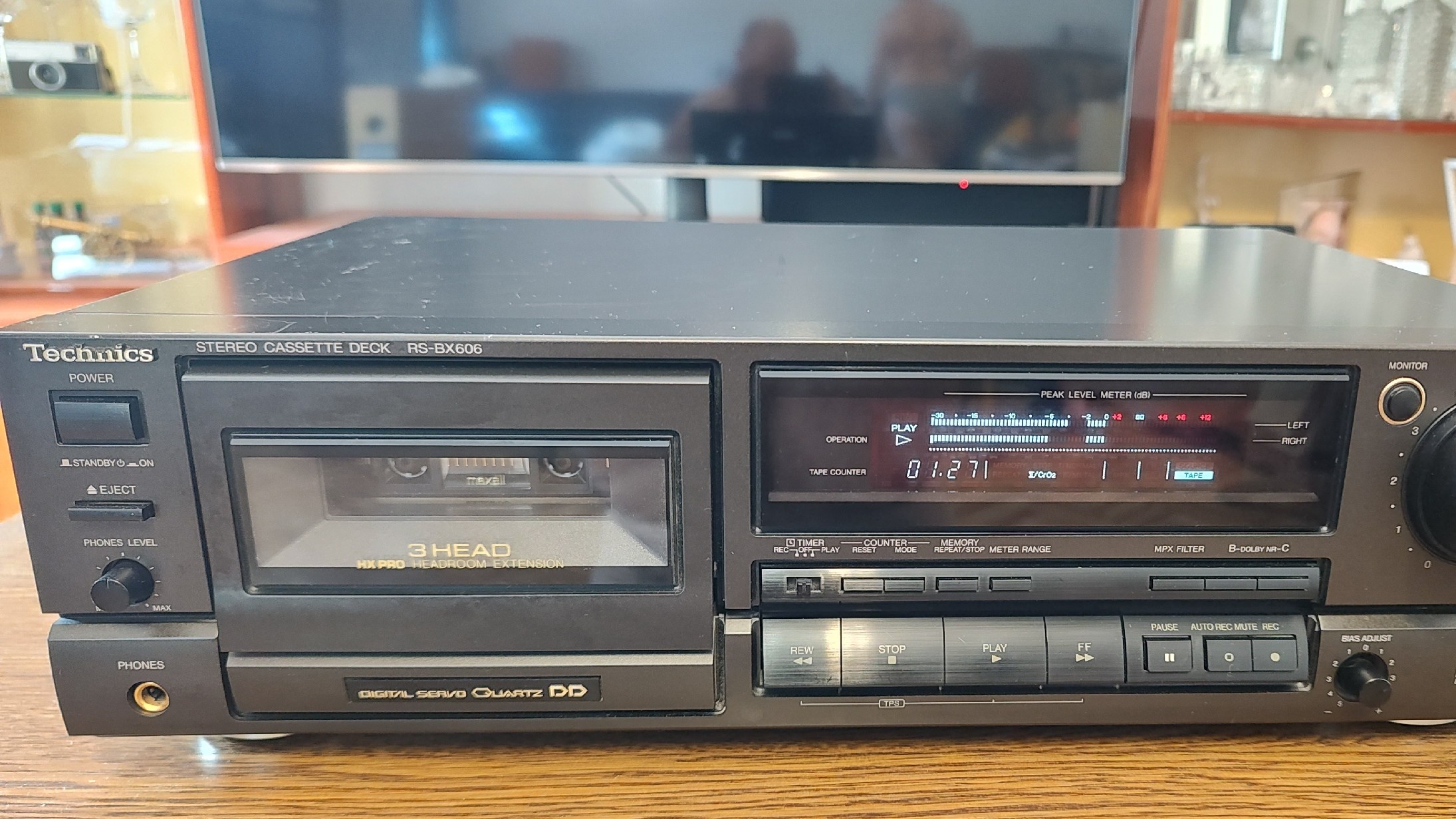

Na sprzedaż w pełni sprawny magnetofon firmy Technics model RS-BX606.

Stan zewnętrzny oceniam na bardzo dobry minus co widać na zdjęciach.

Data

General

Manufacturer: Technics

Model: RS-BX606

Type: Single

Year of manufacture: 1991

Made in: Osaka, Japan

Color: Black

Remote control: No

Power consumption: 20 W

Dimensions: Width 430 mm, Height 135 mm, Depth 300 mm.

Weight: 5.00 kg

Original price approx.: 500,- DM

Connections

Inputs:

CD Direct In: No

Line In: 2xCinch, 60 mV/47 kOhm

Outputs:

Headphone: 6.3mm jack, gold plated, 125 mV/8 ohms (8 ohms ~ 600 ohms).

Line Out: 2xCinch, 400 mV/800 Ohm

Technical Data

Audio heads:3, 1 permalloy recording head, 1 permalloy playback head, 1 ferrite double gap erase head.

Motors:2 - 1 quartz direct drive motor + 1 DC motor

Synchronous fluctuations: 0.05% (WRMS) ; +/- 0.14% (DIN)

Tape types: FE, CrO2, pure iron tape

Frequency response:

FE band: 30 Hz ~ 17 kHz, +/- 3dB ; 20 Hz ~ 18 kHz (DIN).

CrO2: 30 Hz ~ 18 kHz, +/- 3dB ; 20 Hz ~ 19 kHz (DIN)

Metal: 30 Hz ~ 19 kHz, +/- 3dB ; 20 Hz ~ 20 kHz (DIN)

Distortion factor:

Signal-to-noise ratio: (signal level = full scale; CrO2 band).

with Dolby C noise reduction: 74 dB (CCIR)

with Dolby B noise reduction: 66 dB (CCIR)

without noise reduction: 57 dB (A-weighted)

Auto Reverse: no

Title search: yes

Dolby HX PRO: Dolby B, Dolby C

MPX Filter: yes

Fader: No

Pitch control: No

CD Direct Recording: No

Special Features

Class AA technology

Electronically controlled drive

3-head technology (back-band control/listening to the recording possible)

Dolby HX Pro dynamic bias control to adjust for high-frequency music

Dolby B noise reduction

Dolby C noise reduction

Multiplex filter for suppression of pilot tone interference in radio recordings, switchable

Tape counter / playing time display (selectable)

Tape Program Search for finding specific titles

Repeat playback

BIAS Adjust for precise adjustment of the tape type

Monitor circuit

Central level control with separate balance control

Headphone output with volume control

Timer start selectable (rec, play, off)

Zapraszam do zakupu
