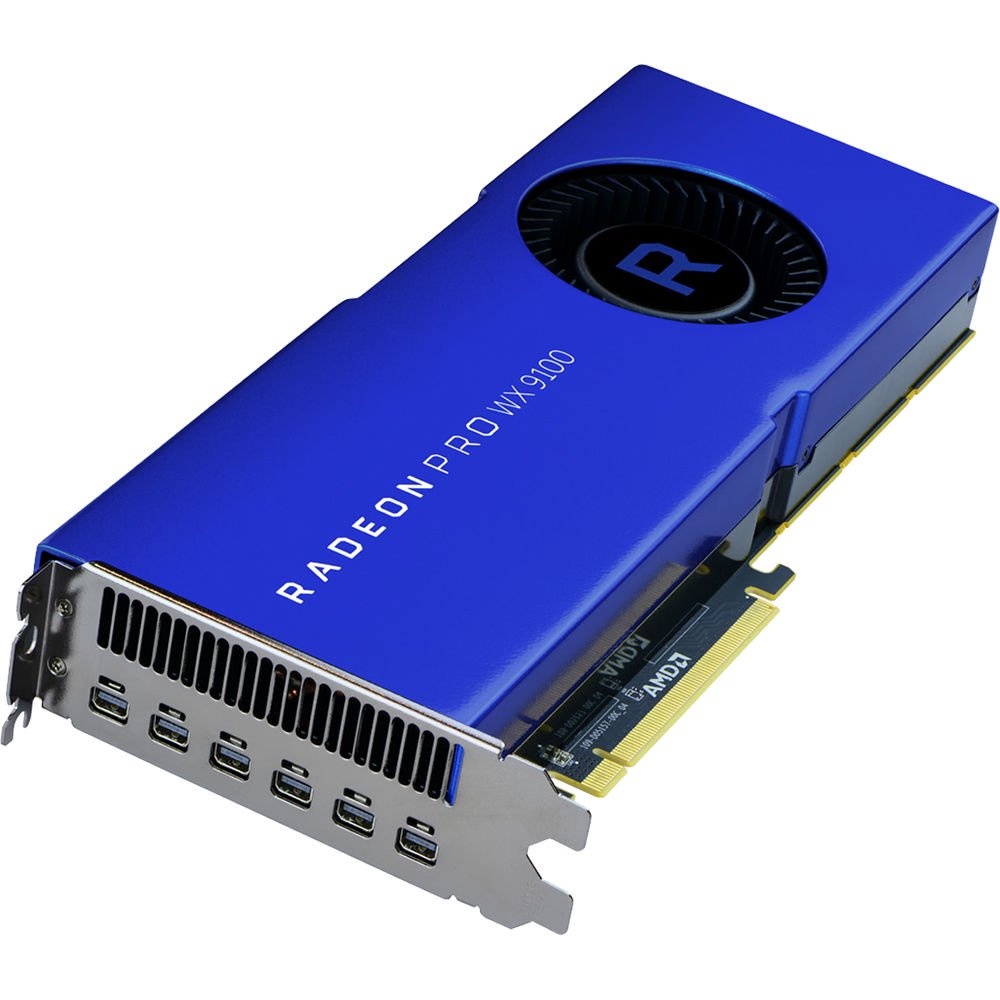

The Radeon Pro WX 9100 was an enthusiast-class professional graphics card by AMD, launched on July 10th, 2017. Built on the 14 nm process, and based on the Vega 10 graphics processor, in its Vega 10 XT variant, the card supports DirectX 12. The Vega 10 graphics processor is a large chip with a die area of 495 mm² and 12,500 million transistors. It features 4096 shading units, 256 texture mapping units, and 64 ROPs. AMD has paired 16 GB HBM2 memory with the Radeon Pro WX 9100, which are connected using a 2048-bit memory interface. The GPU is operating at a frequency of 1200 MHz, which can be boosted up to 1500 MHz, memory is running at 945 MHz. Being a dual-slot card, the AMD Radeon Pro WX 9100 draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 230 W maximum. Display outputs include: 6x mini-DisplayPort 1.4a. Radeon Pro WX 9100 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card dual-slot cooling solution.

Specifications

Product Basics

Name

Radeon™ Pro WX 9100

Family

Radeon PRO

Series

Radeon PRO WX x100 Series

Form Factor

Desktops

Launch Date

August 2017

GPU Specifications

GPU Architecture

Vega

Lithography

14nm FinFET

Stream Processors

4096

Compute Units

64

Peak Single Precision (FP32 Vector) Performance

12.3 TFLOPs

Peak Double Precision (FP64) Performance

769 GFLOPs

OS Support

Windows 10/11 - 64-Bit Edition

Requirements

External Power Connectors

1x6-Pin + 1x8-Pin

Total Board Power (TBP)

230W

GPU Memory

Dedicated Memory Size

16 GB

Dedicated Memory Type

HBM2

Memory Interface

2048-bit

Peak Memory Bandwidth

484 GB/s

Memory ECC Support

Yes

Board Specifications

GPU Form Factor

PCIe® Add-in Card

Bus Type

PCIe® 3.0 x16

Cooling

Active

Display Outputs

DisplayPort™

6x Mini-DisplayPort 1.4

Dimensions

Board Height

Full Height

Board Length

10.5" (267 mm)

Board Width

Double Slot

Additional Features

Supported Technologies

AMD Remote Workstation , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD XConnect™ Technology , Unified Video Decoder (UVD) , Video Code Engine (VCE) , High Bandwidth Cache (HBC) Controller , AMD DirectGMA Technology

10-bit Display Color Output

Yes

3D Stereo Support

Yes (Stereo Connector included)

Software API Support

DirectX®

12.0 (feature level 12_1)

OpenGL®

4.5

OpenCL™

2.0

Vulkan®

1.0
